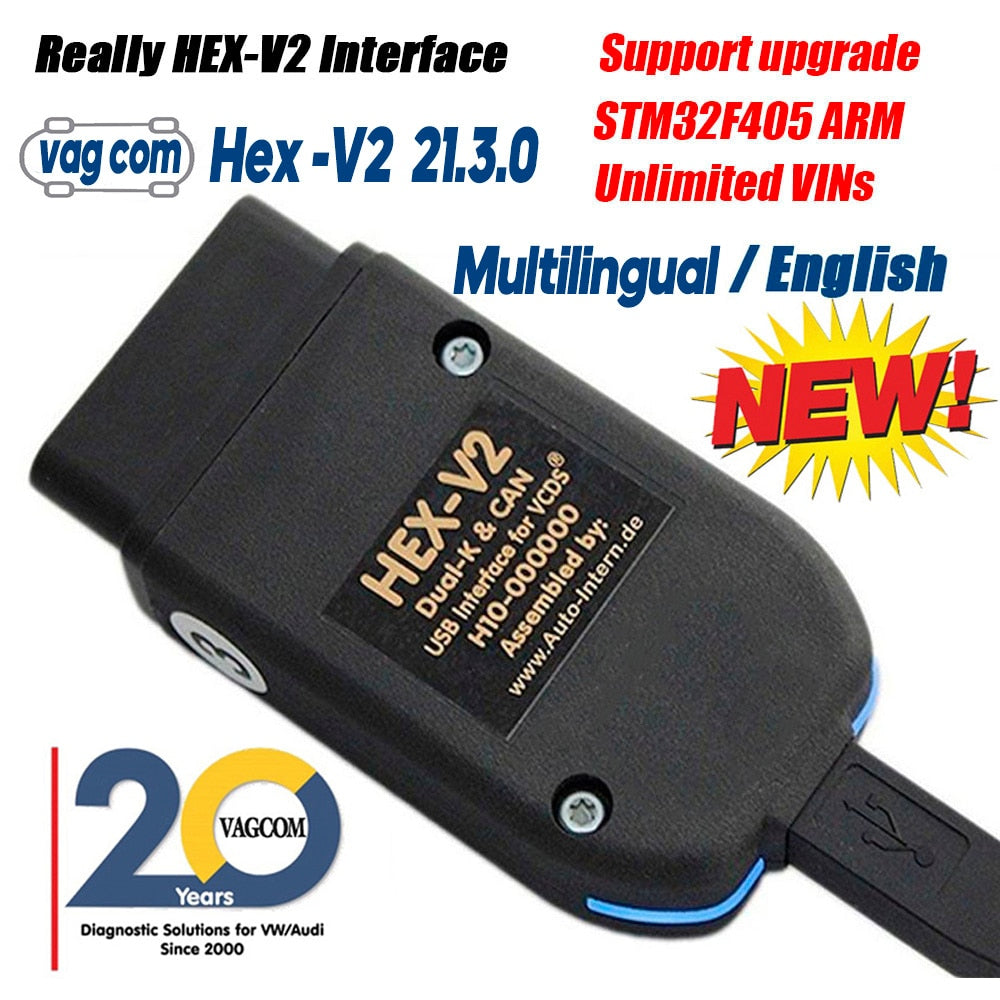

2022 Really hex-v2 VAG COM 21.3 VAGCOM 20.12 VCDSCAN HEX V2 USB Interface FOR VW AUDI Skoda Seat Multilingual/English STM32F405

Works for cars from 1996 to 2021 year. support MQB, MLB MSB platform new car.
STM32F405 ARM chip. can update all the way.

CD only includes English version , if you need other language version, tell us your email and we will send to you directly.

support newest version
Systems required: (32bit/64bit) of Windows 7, Windows 8, , Windows 10 . Not supported Windows 2000,Windows XP,Windows on VM Systems (Parallels, Virtual Box, etc) ,MAC

*****All CD we have read and wrapped very well, if you got CD was broken or PC can not read, please don't open a dispute or give a negative feedback, you can message us to send link download.

*****All cables we have tested before packing, but we can not guarantee it will work correctly with every buyer's Computer Systems and Cars.

Features:
USB connection for compatibility with all modern laptops.
Compatible with all diagnostic-capable VW/Audi passenger cars from 1996 to current; K, K+L, dual-K, or CAN.
Detachable USB cable. The supplied cable has a proprietary screw locking mechanism, but it can be replaced temporarily with a standard USB-A to USB-B ("printer") cable should it become damaged.
Modern 32-bit micro-controller and fully updateable firmware.
Tri-Color (red/green/blue) status/activity LEDs with greatly improved visibility from almost any angle.
12 month guarantee against defects in workmanship or materials.
Includes an embedded license for VCDSCAN and thus acts as a "dongle" for the software, allowing the software to be used and installed on any compatible PC.

Compatibility:
This interface works with all diagnostic-capable VW-Audi Group passenger cars from 1996 through current, except it does NOT fully support the following vehicles:
Routan vans -- All years. These are re-badged Chryslers and don't use VW's diagnostic protocols. and Lambohini

Computer Requirements:

We recommend at least a 1 GHz dual-core processor with 1 GB of RAM and Windows 7 or newer. Windows 8, 8.1, or 10 on a machine robust enough to support the respective operating system are also fine.

Extending this Interface:

The USB standards do not allow for passive extension cords!


Software:

The HEX-V2 should be used with the latest version of our VCDSCAN software. The HEX-V2 does not have the ability to emulate a dumb serial pass-through interface and thus unlikely to be compatible with any software other than VCDSCAN.



Driver Installation:

The HEX-V2 enumerates as an HID device and does not require a special driver. However, there are some HID power management quirks in 8.1 and newer fixed by installing a device-specific "driver" (actually just an INF file) supplied with the VCDSCAN installer.
quirks in 8.1 and newer fixed by installing a device-specific "driver" (actually just an INF file) supplied with the VCDSCAN installer.
